SAFEX AUTOMATIC FIRE TUBING SYSTEM
Automatic self seeking fire tubing system puts out fires when they start, where they start. Designed for installation inside enclosures and inaccessible areas. No complex electronics. Safe against malfunction. Best cost-performance ratio.
FIRE TUBE – THE DIFFERENCE
- Acts as multi-sensor and multi extinguishing jet.
- Made of a high-tech polymer.
- Combines long-time resistance & flexibility.

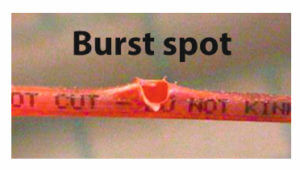

- Temperature sensitivity, when bursting at the hottest spot, it ruptures as a nozzle shape opening.

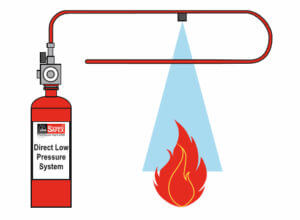

THE DIRECT SYSTEM
The extinguishing agent is transported through the tube exactly to the origin
of the fire.
Cylinder Containing:
Water, Foam, Powder, CO2, Argonite, Clean Agent Gas, Etc.

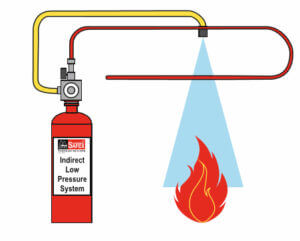

THE INDIRECT SYSTEM
The detection tube just triggers the value when it detects a fire. The extinguishing agent discharges through a conventional outlet port.
Cylinder Containing:
Water, Foam, Powder, CO2, Argonite, Clean Agent Gas, Etc.
ADVANTAGES
- Linear detection line
- Rapid reaction time
- 24 hours a day ready for use
- No external power supply
- Flexible positioning of the Safex tube
- Can be installed into inaccessible areas
- Minimal environmental damages
- Minimum maintenance
- No accidental discharges through a disruption of the fire detector
- Can be used in every environment (marine, industrial atmosphere)
- Low and high pressure applications Not affected by vibration or knocks
- Quick and simple installation
- Low price – high performance relationship
*The System is available in High Pressure and Low Pressure
